Technical Data
|
|
|
Expanding Capability (Expander head 5 pcs)
|
16/20/25/32/40mm (3/8",1/2", 5/8",3/4",1",1-1/4",1-1/2")
|
|
Expected tool life expectation(Cyeles)
|
25mm(1") - 20000pcs 40mm(1-1/2") -10000pcs
|
|
Expanding Times
|
9-10Expansions (040mm,1-1/2")
8-9Expansions (032mm, 1-1/4")
11-12Expansions (025mm,1")
8-9Expansions (020mm,3/4")
8-9Expansions (016mm, 5/8")
|
|
Weight Expectation
|
3KG (Inc. Battery and Nose for 25mm)
|
|
Dimension Expectations
|
206/103/348 mm
|
|
Max. Expanding pipe
|
40mm (1-1/2")
|
|
Min. Expanding pipe
|
16mm (3/8" )
|
|
Battery capacity
|
18V 4.0Ah
|
|
Battery Charger
|
21V/2.3A
|
|
Charging time
|
110 min
|
|
Include
|
• PEX Expander Tool *1

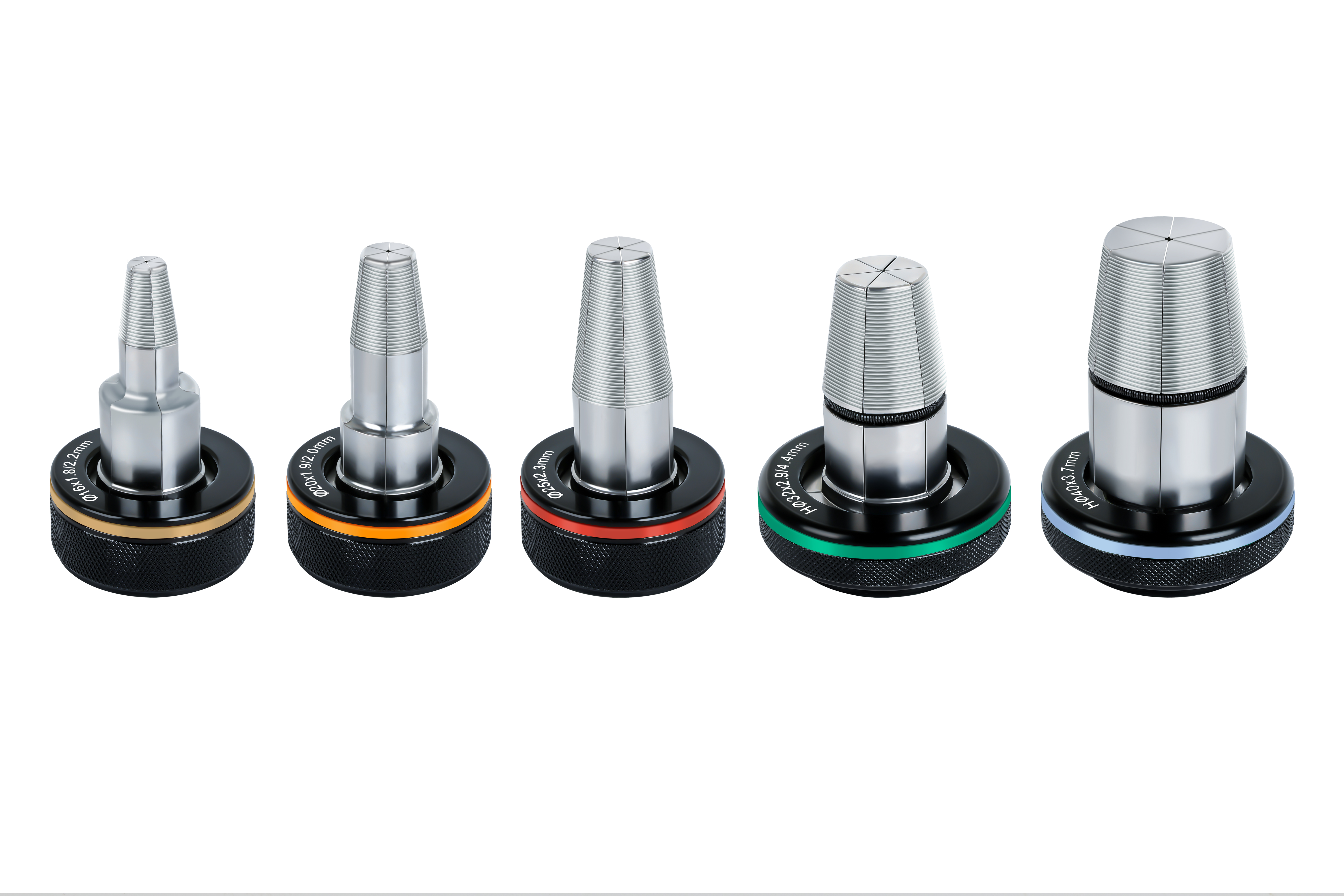

• Expander Heads 16mm *1
• Expander Heads 20mm *1
• Expander Heads 25mm *1
• Expander Heads 32mm *1
• Expander Heads 40mm *1
• PEX Expander Grease *1
• Tool Box *1
• Battery 18V/4.0Ah *2
• Chanrger 21V/2.3A *1
• Single-shoulder strap *1
|
 |
 |
 |
| Optional Battery Adapters | Optional Expander Heads | Life time of each charging |
